PIPE 和 TUBE 的區別
開局第一篇,我們來討論一個非常非常基礎,有點八股文一樣的問題,PIPE和 TUBE到底什么區別呢?
我看過很多關于這個的討論.有一篇文章的作者還曾經請教過ASME協會.

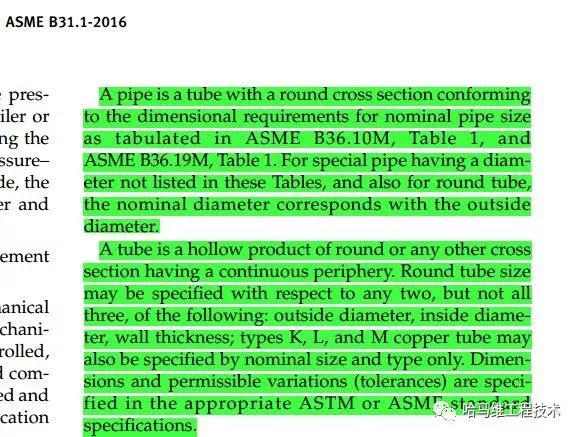

其實,ASME B31.1標準里面已經有明確的闡述.
PIPE是一種符合ASME B36.10M 表格1 和ASME B36.19M的一種圓形截面TUBE.有一些不符合這些表格里面的尺寸的特殊的PIPE,以及圓形TUBE,名義外徑對應實際外徑.
TUBE是圓形的或者其他形狀截面的中空物體,有著連續的外圍.圓形TUBE的尺寸可能用下面三個參數里的兩個描述,一般不用三個: 外徑,內徑,壁厚.
嚴格意義上,PIPE應該翻譯成公稱管,配管. (不要翻譯成公制管,因?yàn)楣乒軐?duì)應的是英制管,是指的國標里面的一套PIPE尺寸體系,不過目前基本不怎么使用了)
TUBE就翻譯成管子就好了.

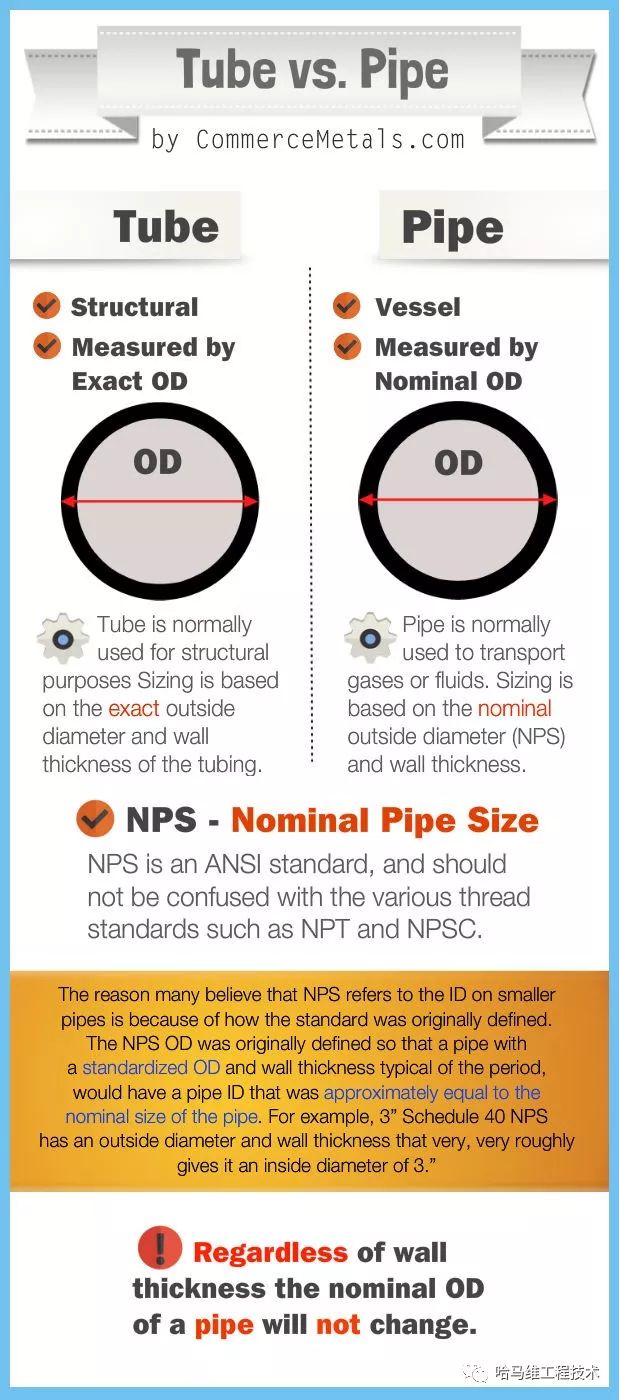

所以,問題就簡單了.我們來總結概括一下,
用來輸送流體的是PIPE.
用來傳導熱量的是TUBE.
1寸的PIPE,外徑是33.4mm. 2寸的PIPE,外徑是60.3mm.
1寸的TUBE,外徑是25.4mm.2寸的TUBE,外徑是50.8mm.
符合ASME B36.10 B36.19的是PIPE.
不符合的是TUBE.
圓形的可能是PIPE.
但是非圓形的,一定是TUBE.
Steel tubes and pipes are made of an alloy of iron, carbon and other elements. Steel tubes and pipes are used in the machine and construction industry, but they also can be found in other manufacturing and industrial applications. In tubular systems steel pipes and tubes are used to transport fluids and gasses for commercial and residential buildings. From a production technology point of view we recognize rolled seamless tubes and pipes and precision drawn seamless tubes and pipes.
Seamless steel tubes and pipes are described in the technical specifications. Seamless steel pipes and tubes are characterized by sizes/dimensions and its tolerances, the type of steel and technical and delivery conditions (TDC). For seamless steel tubes and pipes, individual national standard institutions use various procedures to standardize the data.
